SCB-27 modernization of Essex/Ticonderoga
class aircraft carriers, (CV 9-12, 14-16, 18-20, 31, 33-34, 38-39)
(work completed between 1950 and 1955)
Between 1947 and 1955, fifteen Essex and Ticonderoga
class aircraft carriers were thoroughly modernized. The impending
arrival of high-performance jet aircraft and nuclear-armed heavy
attack bombers had rendered these still rather new ships almost
incapable of executing their most vital missions, while the
post-World War II financial climate precluded building replacements.
Accordingly, a reconstruction program began in Fiscal Year 1948,
with the incomplete Oriskany as the prototype. Two more ships
were converted the next year, three in FY 1950 and then, with the
the Cold War in full bloom, nine more Fiscal Years 1951 to 1953.
Designated SCB-27, the modernization was very extensive,
requiring some two years for each carrier. To handle much heavier,
faster aircraft, flight deck structure was massively reinforced.
Stronger elevators, much more powerful catapults, and new arresting
gear was installed. The original four twin 5"/38 gun mounts were
removed. The new five-inch gun battery consisted of eight weapons,
two on each quarter beside the flight deck. Twin 3"/50 gun mounts
replaced the 40mm guns, offering much greater effectiveness through
the use of proximity-fuzed ammunition.
A distinctive new feature was a taller, shorter island. To better
protect aircrews, ready rooms were moved to below the armored hangar
deck, with a large escalator on the starboard side amidships to move
airmen up to the flight deck. Internally, aviation gasoline storage
was increased by nearly half and its pumping capacity enhanced. Also
improved were electrical generating power, fire protection, and
weapons stowage and handling facilities. All this added considerable
weight: displacement increased by some twenty percent. Blisters were
fitted to the hull sides to compensate, widening waterline beam by
eight to ten feet. The ships also sat lower in the water, and
maximum speed was slightly diminished.
The modernized ships came in two flavors, the first nine
(SCB-27A) having a pair of H 8 hydraulic catapults, the most
powerful available in the late '40s. The final six received the
SCB-27C update, with much more potent steam catapults, one of two
early 1950s British developments that greatly improved aircraft
carrier potential. These six were somewhat heavier, and wider, than
their sisters. While still in the shipyards, three of the SCB-27Cs
were further modified under the SCB-125 project, receiving the
second British concept, the angled flight deck, plus an enclosed
"hurricane bow" and other improvements. These features were so
valuable that they were soon back-fitted to all but one (Lake
Champlain) of the other SCB-27 ships. The fourteen fully
modernized units were the "journeymen" aviation ships of the late
1950s and 1960s, providing the Navy with much of its attack aircraft
carrier (CVA) force and, ultimately, all its anti-submarine warfare
support aircraft carriers (CVS).
The SCB-27 program involved rebuilding fifteen ships,
three of which were given a combined SCB-27 and SCB-125
modernization.
Kearsarge (CV-33). Reconstructed to SCB-27A design by the
Puget Sound Naval Shipyard. Work began in February 1950;
recommissioned in February 1952.
was extended to include SCB-125 features; recommissioned in August 1955.
Essex/Ticonderoga class characteristics, as
modified under project SCB-27A:
Displacement: 40,600 tons (full load)
Dimensions: 898' (length overall); 101' 4" (hull); 151' 11"
(over flight deck and projections)
Powerplant: 150,000 horsepower, steam turbines, four propellers,
31.7 knot maximum speed
Aircraft ("ultimate" planned 1958 complement): 72 planes,
including 24 15,000 pound interceptors, 24 30,000 pound escort
fighters and 24 30,000 pound attack bombers. The actual aircraft
complement carried was quite different.
Gun Armament: eight 5"/38 guns in single mountings plus fourteen
twin 3"/50 gun mounts. From the mid-1950s onward, gun armament was
rapidly reduced.
|
SCB-125 modernization of Essex/Ticonderoga
class aircraft carriers, (CVA/CVS 9-12, 14-16, 18-20, 31, 33-34, &
38)
(work completed between 1955 and 1959)
Between 1954 and 1959, fourteen modernized Essex and
Ticonderoga class aircraft carriers of the SCB-27 type were
further updated under the SCB-125 program. This work, incorporating
new features not known or accepted when the earlier scheme was
originated in the later 1940s, greatly enhanced seakeeping and
high-performance aircraft operations. Perhaps the most significant
new attribute was the British-developed "angled flight deck", in
which the carrier's aircraft landing area was slanted several
degrees off to port, enabling aircraft to easily "go around" in the
event of recovery difficulties. The benefits this brought to carrier
aviation operating safety can hardly be overemphasized.
Another notable SCB-125 alteration included moving the after
aircraft elevator from the centerline to the starboard deck edge,
greatly facilitating aircraft handling. In fact, this change had
already been made on the last six of the SCB-27s, the steam-catapult
SCB-27C type, the final three of which received both modernization
schemes in the same shipyard session. Blending the flight deck's
forward end into the upper hull form, creating the so-called
"hurricane" bow, constituted the final significant change. This
concept, already adopted for the Forrestal class "super
carriers" then under construction, improved seakeeping in rough
seas. It also provided a covered location for the carriers'
secondary conning station, whose portholes, visible across the upper
bow plating, were a distinctive feature of the refitted ships.
Though the SCB-125 program significantly changed the ships'
appearance, the scope of the work was much less than that of SCB-27
and generally took seven or eight months' shipyard time, rather than
the two years or more that was typical of the earlier modernization.
The exception was Oriskany, the SCB-27 prototype and the last
to get the SCB-125 treatment. Uniquely, she had her hydraulic
catapults replaced with more powerful steam types and received many
other improvements in a reconstruction that lasted twenty-eight
months in 1957-59.
As quickly as new carriers and steam catapult conversions joined
the fleet during the later '50s, the seven SCB-125 hydraulic
catapult ships were reassigned to the anti-submarine mission,
replacing unmodernized carriers. Four of the seven steam catapult
carriers also became ASW ships during the 1960s, though some of
these operated very little, if at all, in that role. Most of the ASW
ships received SQS-23 long-range sonars in 1960-66. Nine ships left
active service in 1969-71, as major reductions in fleet strength
were implemented. Three more decommissioned in 1972-74. Hancock
and Oriskany lasted into the middle-'70s, and the veteran
Lexington remained operational as training carrier until 1991.
All four of the Essex class museum ships are of the
modernized SCB-27/SCB-125 configuration.
The SCB-125 program involved the further rebuilding of
fourteen ships, as listed below in the order of the completion of
this work:

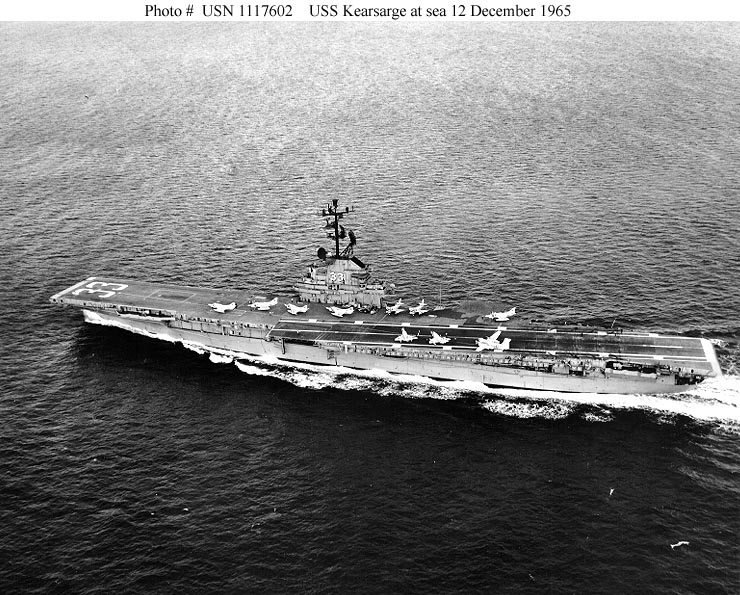

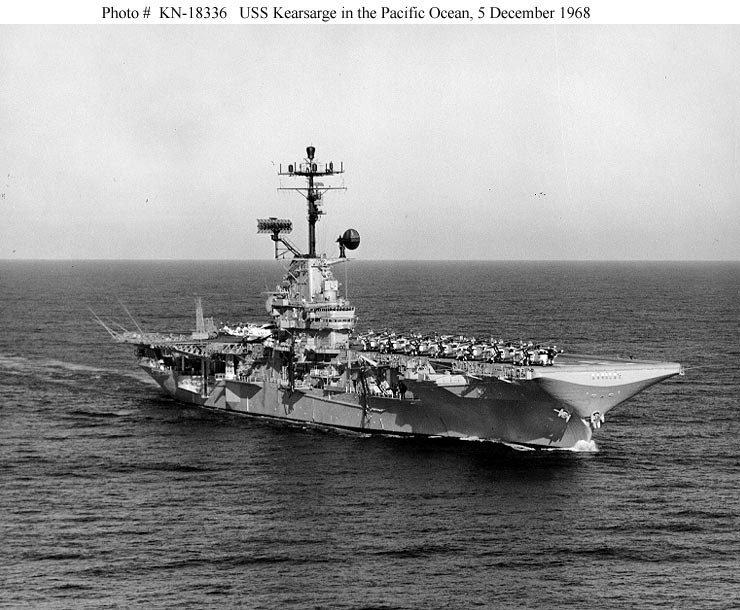

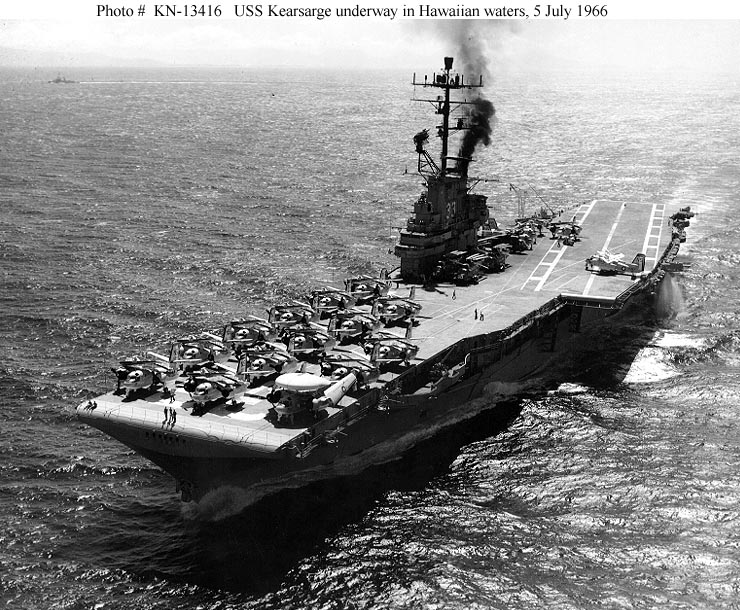

Kearsarge (CVA/CVS-33). Hydraulic catapults. Received
SCB-125 refit in 1956-57.
Essex/Ticonderoga class characteristics, as
modified under project SCB-125 with steam catapults:
Displacement: 43,060 tons (full load)
Dimensions: 894' 6" (length overall); 103' (hull); 166' 10"
(over flight deck and projections)
Powerplant: 150,000 horsepower, steam turbines, four propellers,
30.7 knot maximum speed
Aircraft: (as Attack Carrier) Approximately 70 aircraft,
including five squadrons of fighters and attack planes, and small
detachments of heavy attack, airborne early warning and
reconnaissance planes;
(as Anti-submarine Support Carrier) Approximately 50 aircraft,
including two squadrons of S2F fixed-wing aircraft, one squadron of
helicopters and small detachments of airborne early warning and (in
the 1960s) fighters.
Gun Armament: eight 5"/38 guns in single mountings plus a few
twin 3"/50 gun mounts. From the mid-1950s onward, gun armament was
steadily reduced to compensate for growing weights of topside
equipment and embarked aircraft.
|
